WebAR

Zappar WebAR is the web version of our native Zappar app, allowing users to view experiences built with ZapWorks using their browser.

When used alongside our QR code and deep link triggers, the WebAR platform is a great way of ensuring your end-users are able to access your content with as little friction as possible.

WebAR is also used as a distribution platform when developing with the Universal AR SDKs. When using one of our Universal AR SDKs, you are building a website and integrating Zappar's AR technology into it. You can then either host this site on the ZapWorks servers, or self host it.

Due to the technical limitations of current browsers and their limited access to device resources, the WebAR platform works best for light AR experiences or those that have been heavily optimized.

When launching a ZapWorks Designer or ZapWorks Studio experience in the mobile browser (WebAR), it is essential to have a splash screen. The splash screen requires a ‘user-initiated event’ in order to:

  • To request permission to access device motion data
  • To request permission to access the camera (on some platforms)
  • To play audio

Zappar Branded WebAR Distribution

The standard Zappar branded WebAR Distribution method is available to all users free of charge by default through their workspace.

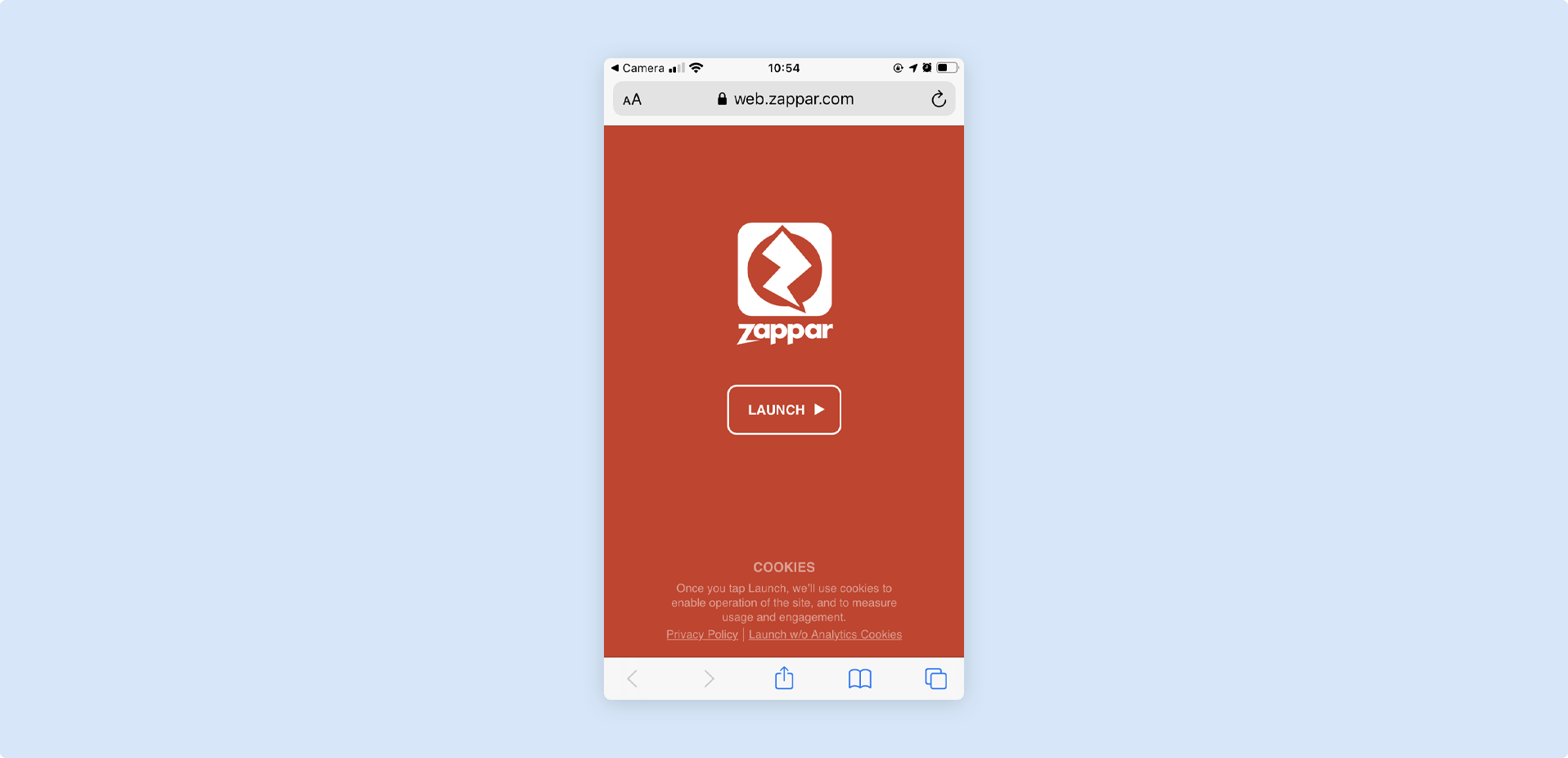

Zappar Branded WebAR Distribution

As you can see it has minimal branding and does not support any customisations. The Zappar branded WebAR Distribution method is perfect for many use cases, but is not appropriate for some customers’ projects.

Lite Branded WebAR Distribution

Lite branded WebAR Distribution has a neutral white and black branding by default, and allows customisation of the logo and title of the text. In the example below, we have uploaded a generic logo, and included ‘Company name’ as the title.

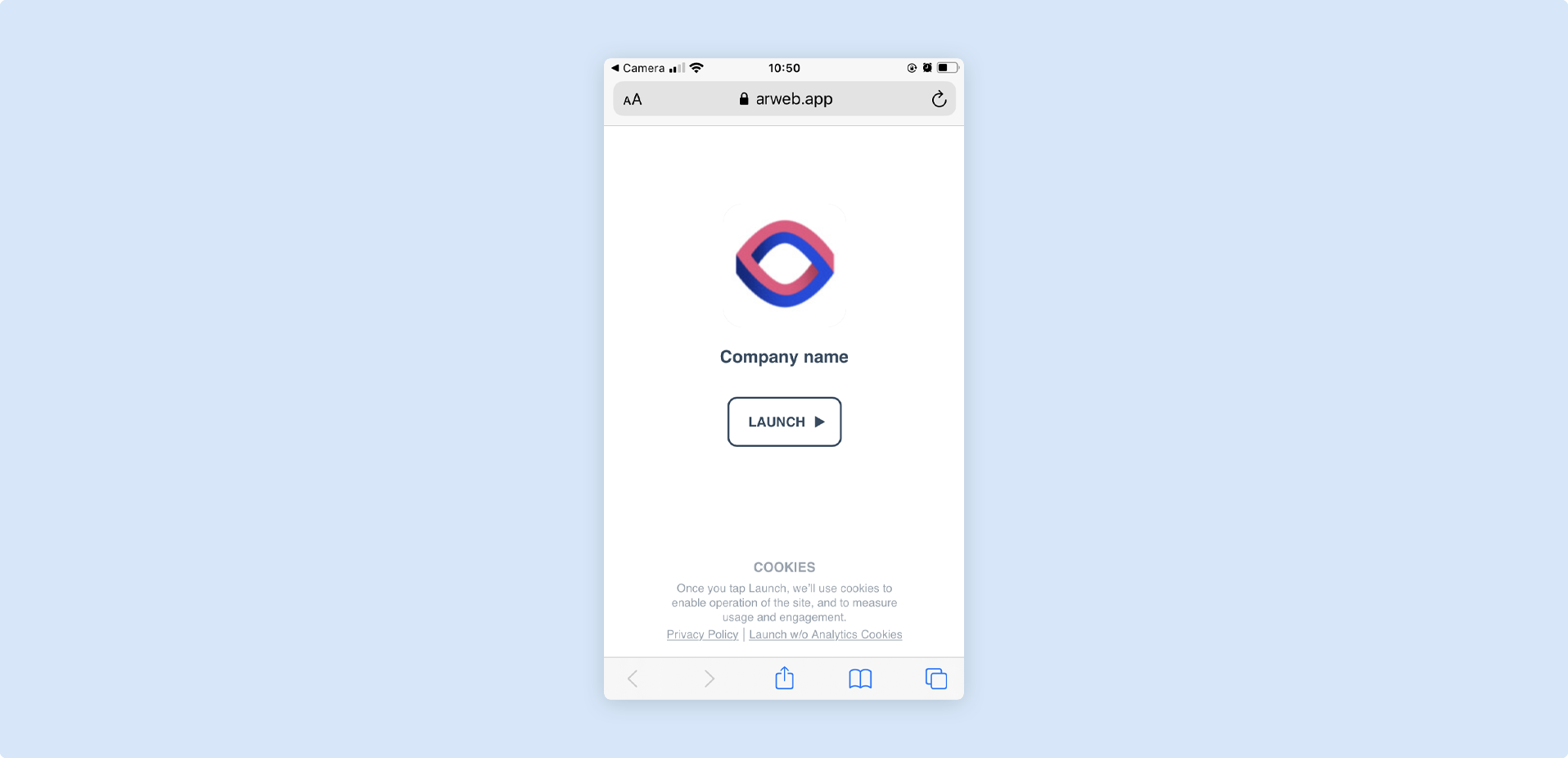

Lite Branded WebAR Distribution

The Lite branded WebAR Distribution method is only available on Pro and Enterprise plans. To gain access to this feature, you can upgrade your ZapWorks subscription here.

Configuring your Lite Branded WebAR Distribution

In order to launch your project via the Lite branded WebAR Distribution method, you first need to create and open a ZapWorks Studio or Designer project on my.zap.works. Once created and opened, follow the steps below.

The Lite branded WebAR Distribution uses our standard privacy policy. If you require a custom privacy policy, check out our custom WebAR sites.

1) On the project overview page (on the right) you will see the option to update the Project icon and title.

Project icon and title

We recommend using a JPEG image when uploading your icon.

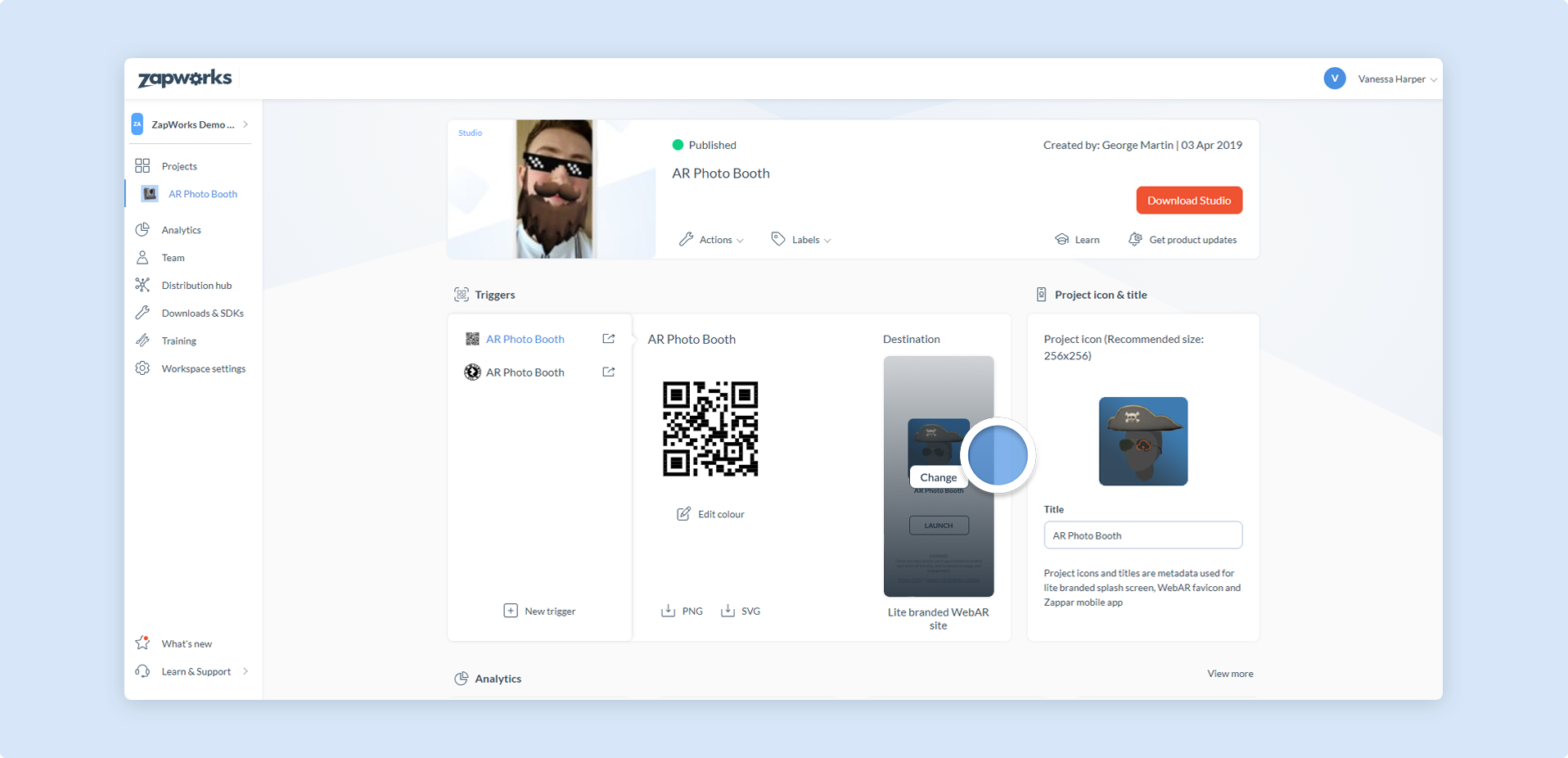

2) Once you have updated the Project icon and title, you should set the project trigger destination to Zappar lite branded.

Trigger launch destination

Your project icon and title will store in your cached data and may not reflect any updates you make. If you've launched the experience before making changes to the icon / project name, you might need to clear your mobile browser's cached data to see the changes.

Setting your Default WebAR Distribution

You can also set a WebAR distribution method as default, meaning all future triggers added to both new and existing projects will automatically launch into the selected WebAR distribution method without needing to change their configuration manually.

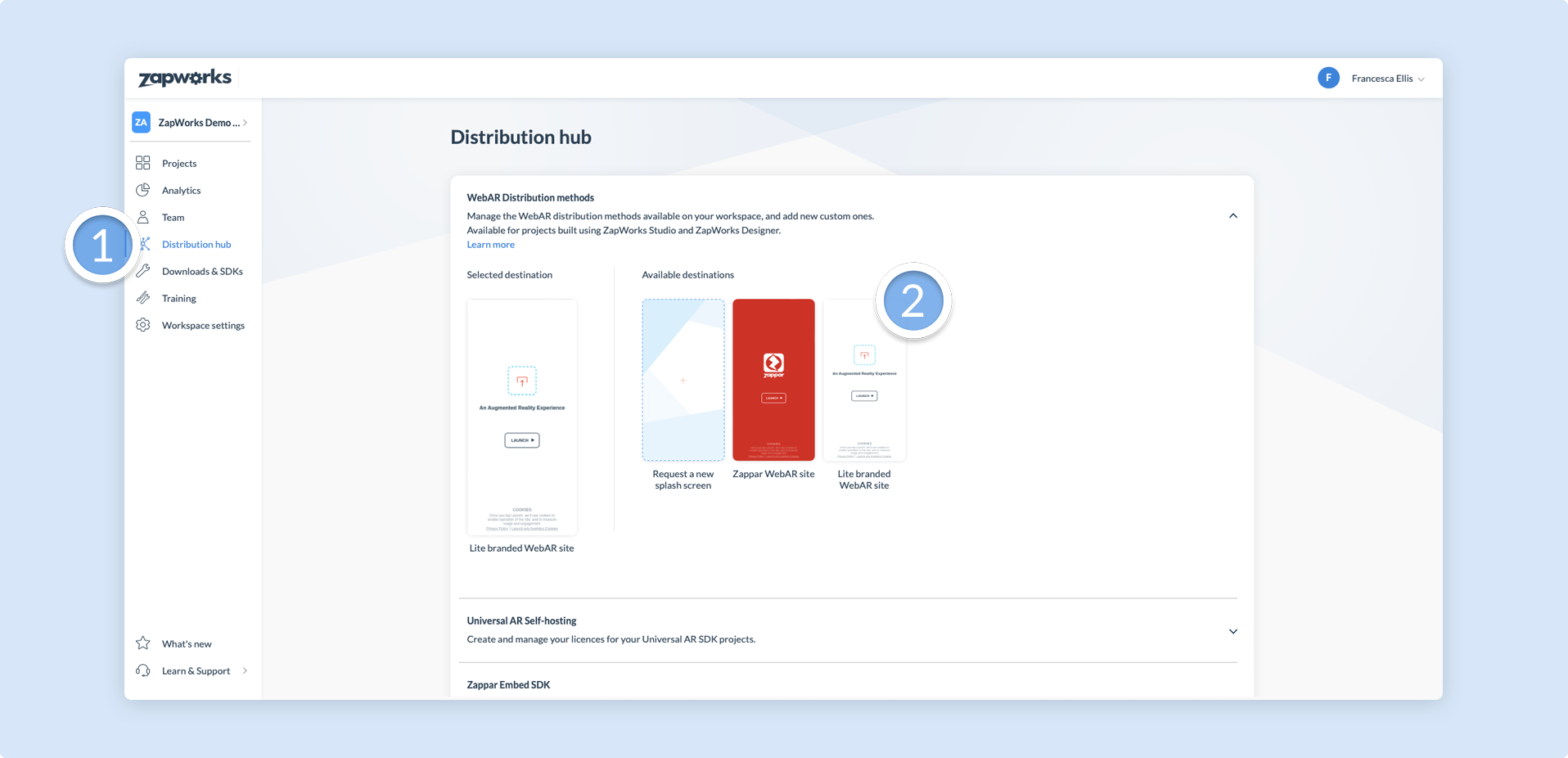

To do this, select Distribution hub on the left-hand navigation of your workspace, hover over your selected distribution method, and click 'Make default'.

Setting Lite Branded as Default

Enhanced WebAR Distribution

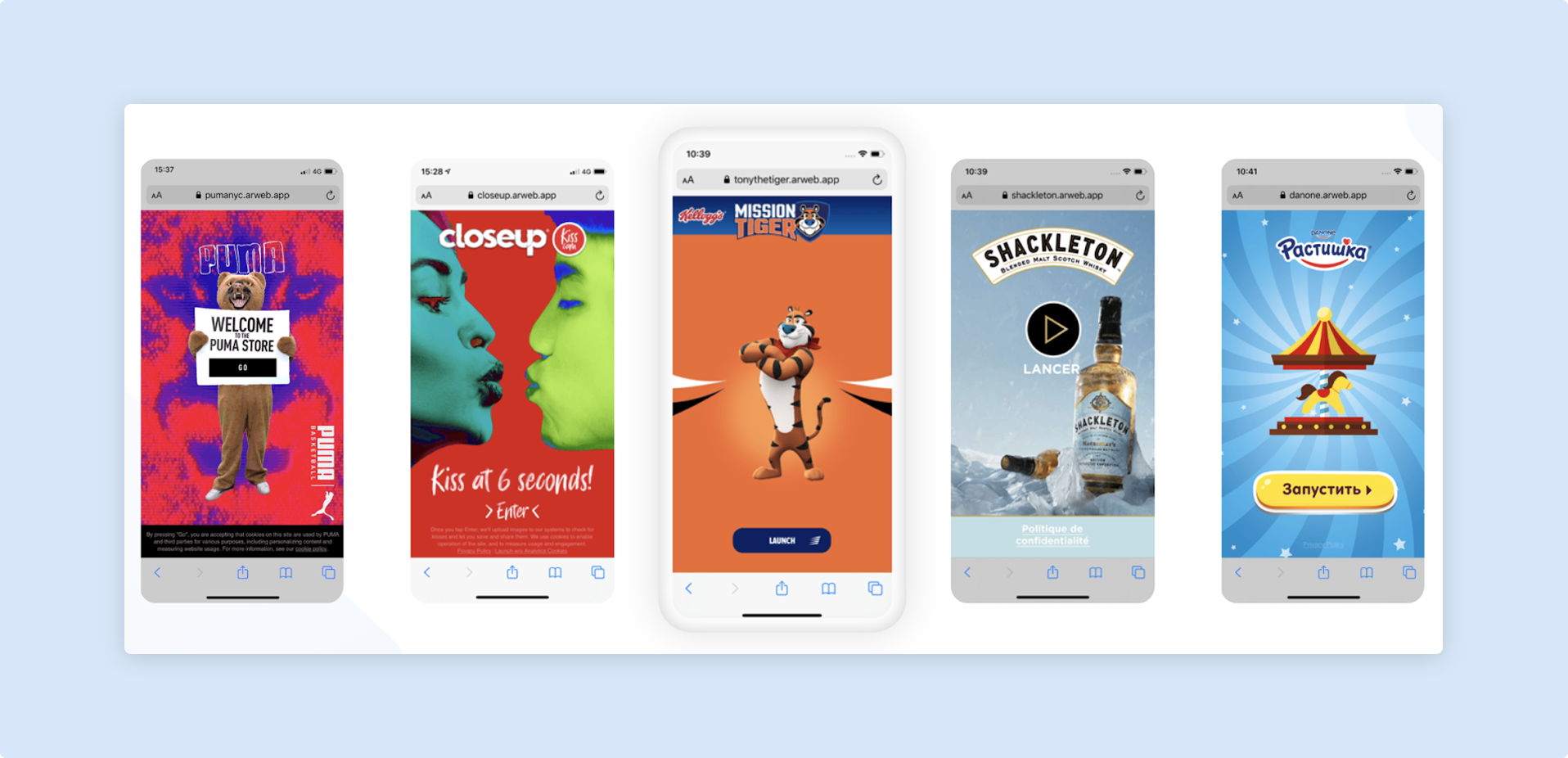

In addition to the Lite Branded WebAR Distribution, Zappar also offers customers the option of full customization of their WebAR distribution. Enhanced WebAR Distributions provide a fully branded splash page, with a custom interface and domain. This distribution method also provides access to integrated analytics, a dedicated Cloudfront distribution, and early access to beta features. You can see some examples of the Enhanced WebAR Distribution below.

The Enhanced WebAR Distribution is available as an add on to your ZapWorks subscription. Prices start at £5250 per project per year. To learn more about Enhanced WebAR Distributions and their features, you can request a call with a member of our sales team here: https://zap.works/webar/request/ or send a request from the distribution hub on your workspace.

The Enhanced WebAR Distribution is only available to users on an Enterprise plan.

If you have purchased an Enhanced WebAR Distribution, these will also appear in your workspace's WebAR distribution methods, found in the distribution hub.
